Window, Door & Building Envelope Systems
Product Portfolio
The complete public ViknoPlus catalog of window, door, facade, terrace, glazing, gate, shutter, hardware and access-control systems presented through this partner site.
01 / 07
Window Systems
PVC Window SystemsAluminum Window Systems
PVC Window Systems
PVC

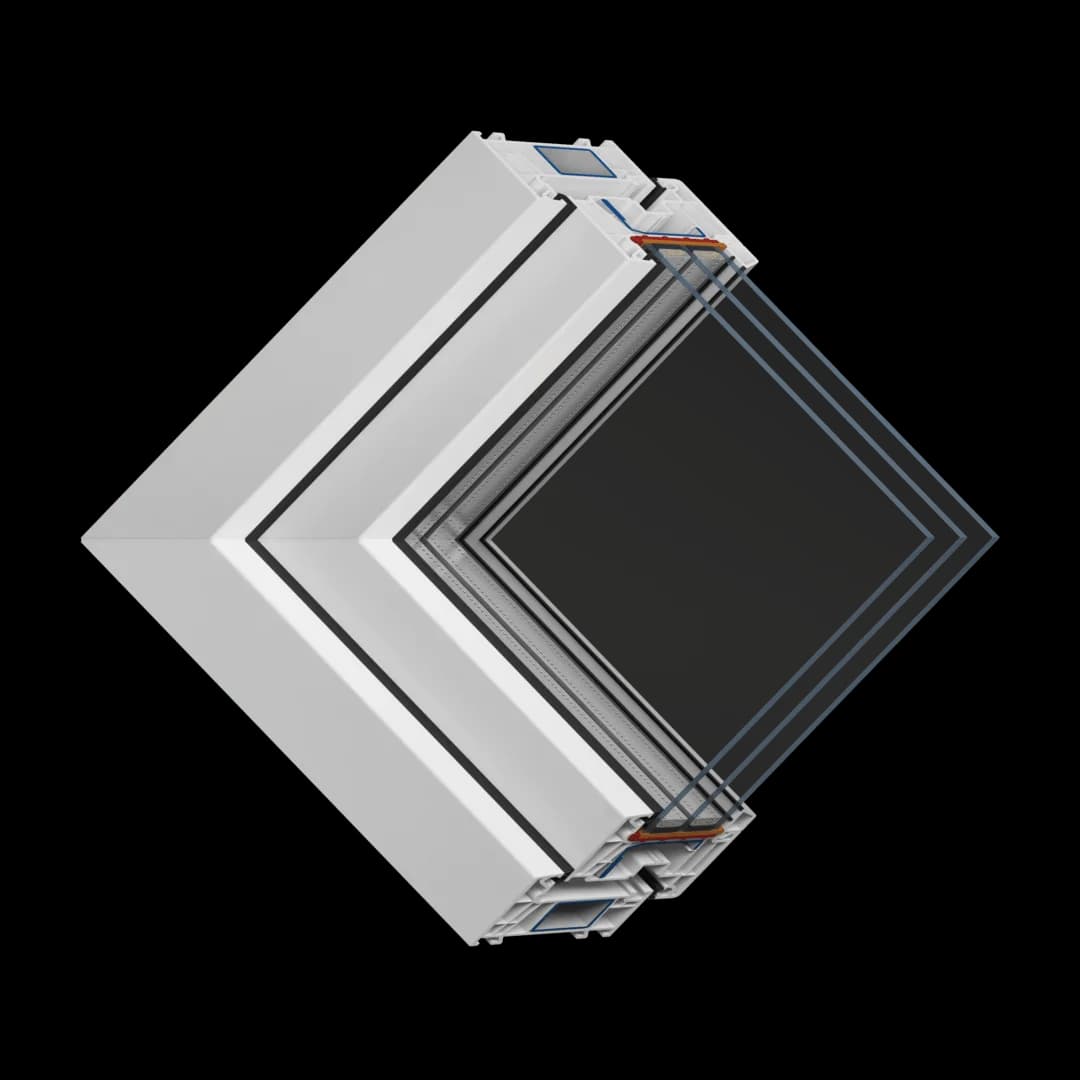

Protec
PVC Window System
- Profile
- WHS Hallo 72
- Frame / sash chambers
- 5 / 5
- Installation depth
- 72 mm
PVC
Standart
PVC Window System
- Profile
- VEKA SOFTLINE 70
- Frame / sash chambers
- 5 / 5
- Installation depth
- 70 mm
PVC

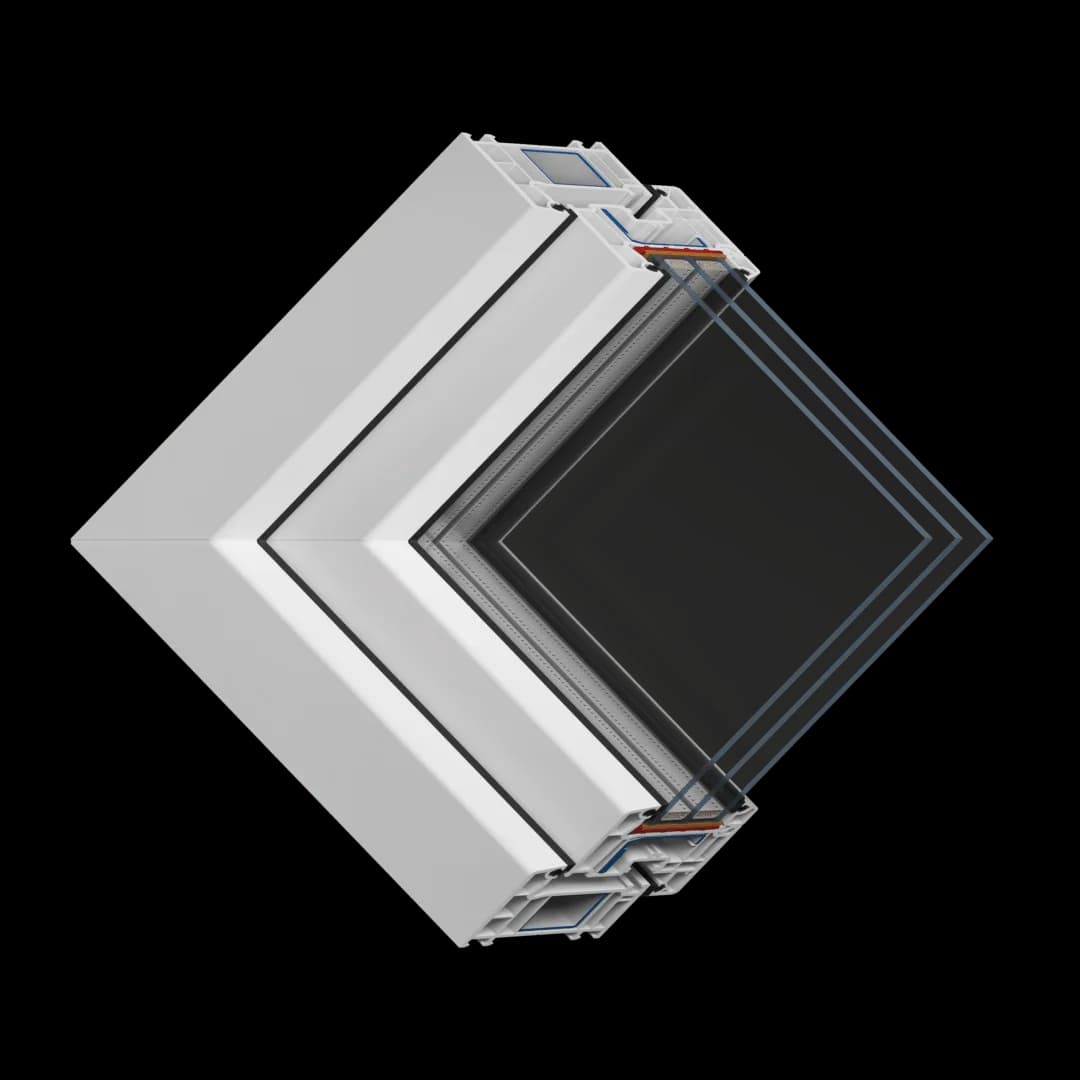

Lux
PVC Window System
- Profile
- VEKA SOFTLINE 70
- Frame / sash chambers
- 5 / 5
- Installation depth
- 70 mm
PVC

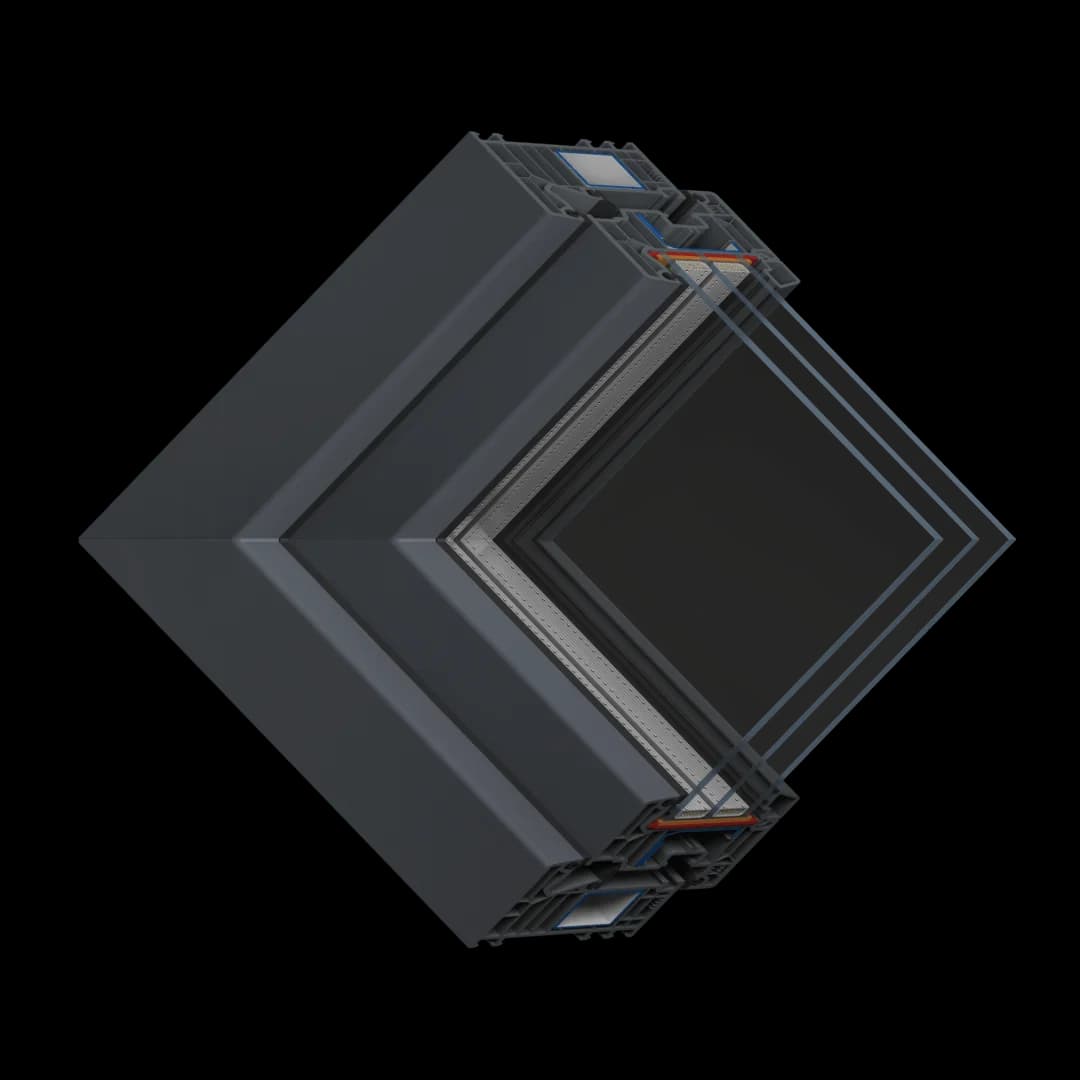

Revolution
Energy-Efficient PVC Window System
- Profile
- VEKA SOFTLINE 82
- Frame / sash chambers
- 7 / 6
- Installation depth
- 82 mm
Aluminum Window Systems
ALUMINUM
MB-45
Aluminum Window System
- Maximum sash size
- 1,250 × 2,400 mm
- Maximum sash weight
- 130 kg
- Glazing range
- 2–35 mm in sashes; 2–26 mm in fixed lights
ALUMINUM
MB-59S
Aluminum Window and Door System
- System
- Aluminum Window and Door System
- Partner catalog
- ViknoPlus
ALUMINUM
MB-70
Thermally Insulated Aluminum Window System
- Maximum sash size
- 2,400 × 1,600 mm
- Maximum sash weight
- 130 kg
- Air permeability
- Class 4 — EN 12207:2001
ALUMINUM
MB-86
High-Insulation Aluminum Window System
- Frame / sash depth
- 77 / 86 mm
- Maximum sash size
- 1,700 × 2,800 mm
- Maximum sash weight
- 150 kg; 160 kg for tilt-and-slide
02 / 07
Door Systems
PVC Door SystemsAluminum Door Systems
PVC Door Systems
PVC
DV-T105 WHS
PVC Door System
- Profile
- WHS Halo 72
- Frame / sash chambers
- 5 / 4
- Installation depth
- 72 mm
PVC
AD-105
Interior PVC Door System
- Profile
- VEKA SOFTLINE
- Frame / sash chambers
- 5 / 5
- Installation depth
- 70 mm
PVC
AD-114
PVC Door System
- Profile
- VEKA SOFTLINE
- Frame / sash chambers
- 7 / 6
- Installation depth
- 82 mm
PVC

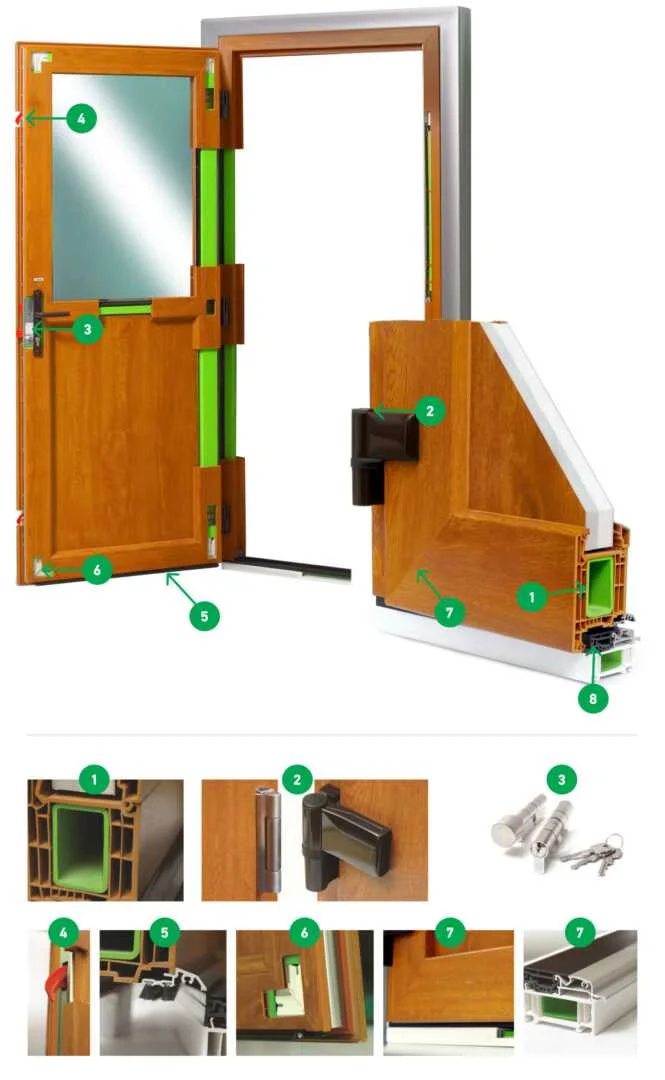

AD-120
PVC Door System
- Profile
- VEKA SOFTLINE 70
- Frame / sash chambers
- 5 / 5
- Installation depth
- 70 mm
Aluminum Door Systems
ALUMINUM
MB-70 Door
Thermally Insulated Aluminum Door System
- Maximum door size
- 1,300 × 2,400 mm
- Frame / leaf depth
- 70 / 70 mm
- Maximum leaf weight
- 120 kg
ALUMINUM
MB-86 Door
High-Insulation Aluminum Door System
- Frame / leaf depth
- 77 / 77 mm
- Maximum door size
- 1,400 × 3,000 mm
- Maximum leaf weight
- 200 kg
03 / 07
Sliding & Terrace Systems
Tilt & Slide SystemsParallel Sliding SystemsLift & Slide Systems
Tilt & Slide Systems
Parallel Sliding Systems
04 / 07
Facades & Winter Gardens

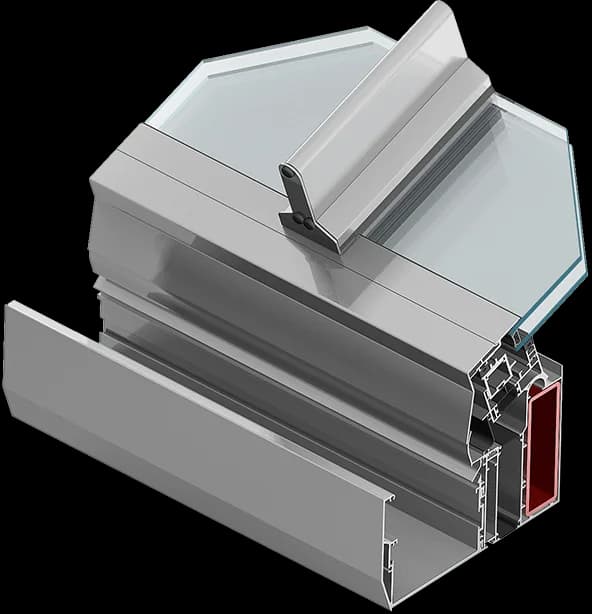

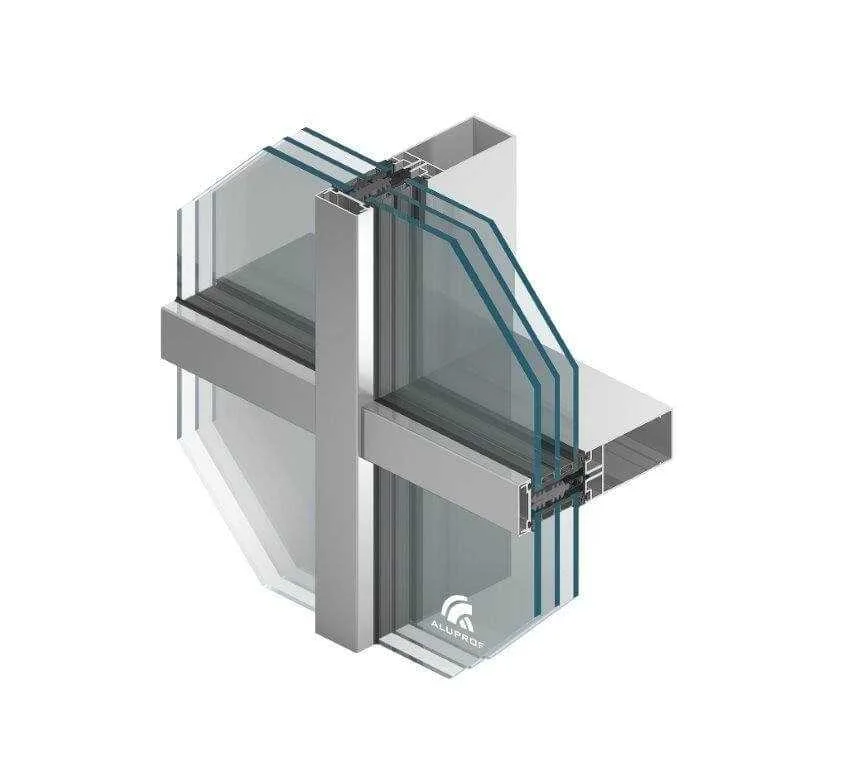

Facade SystemsWinter Garden Systems
05 / 07
Gates & Shutters

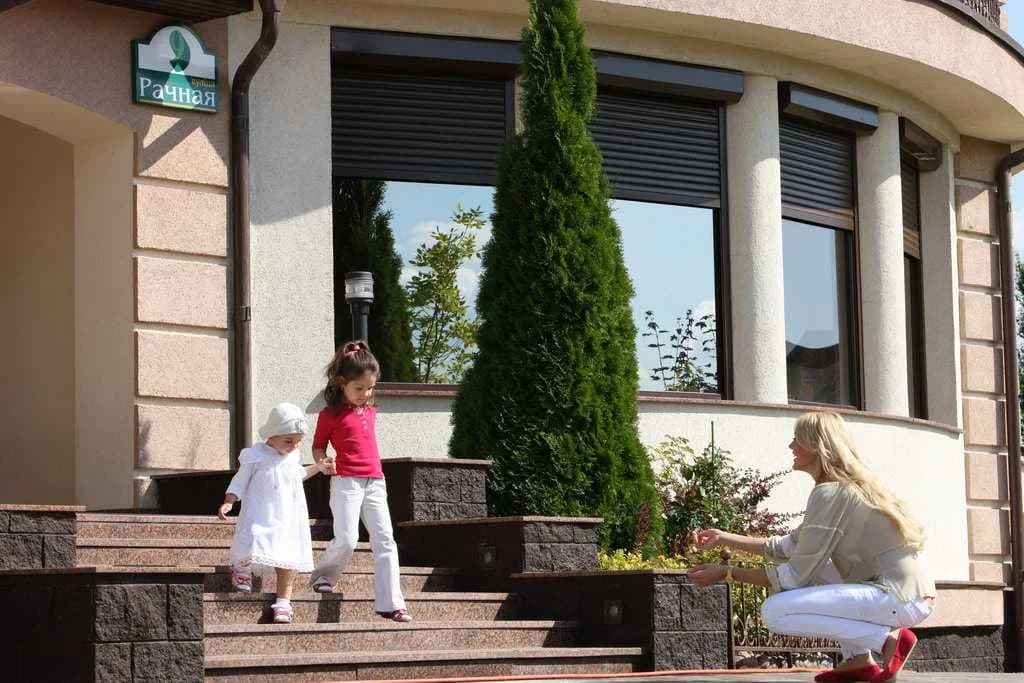

Garage DoorsIndustrial DoorsPanoramic DoorsEntrance GatesRoller Shutters
Garage Doors
MIXED

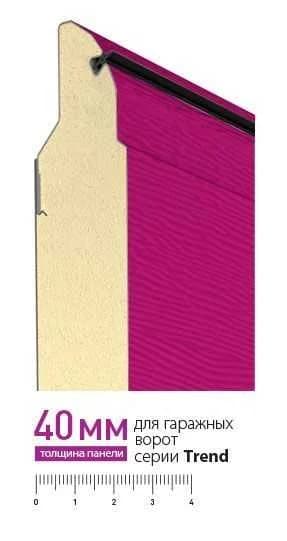

Garage Door Trend
Sectional Garage Door
- Maximum size — torsion springs
- 6,000 × 3,250 mm
- Maximum size — extension springs
- 3,500 × 3,085 mm
- Minimum headroom
- 100 mm manual; 125–140 mm automated
Industrial Doors
MIXED

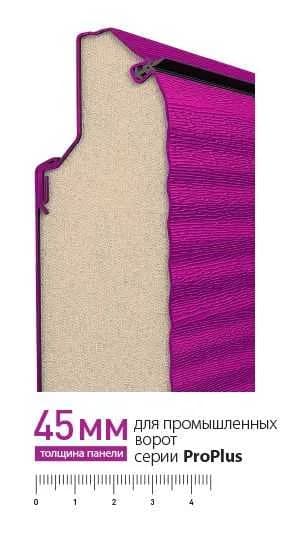

Industrial Door ProPlus
Industrial Sectional Door
- Maximum size
- 8,000 × 7,000 mm
- Minimum headroom
- 230 mm with low-headroom installation
- Balancing
- Torsion springs
Panoramic Doors
ALUMINUM
Panoramic Door AluPro
Panoramic Sectional Door
- Maximum size
- 7,000 × 6,000 mm
- Panel thickness
- 45 mm
- Glazing options
- 3 mm single or 26 mm double glazing
ALUMINUM

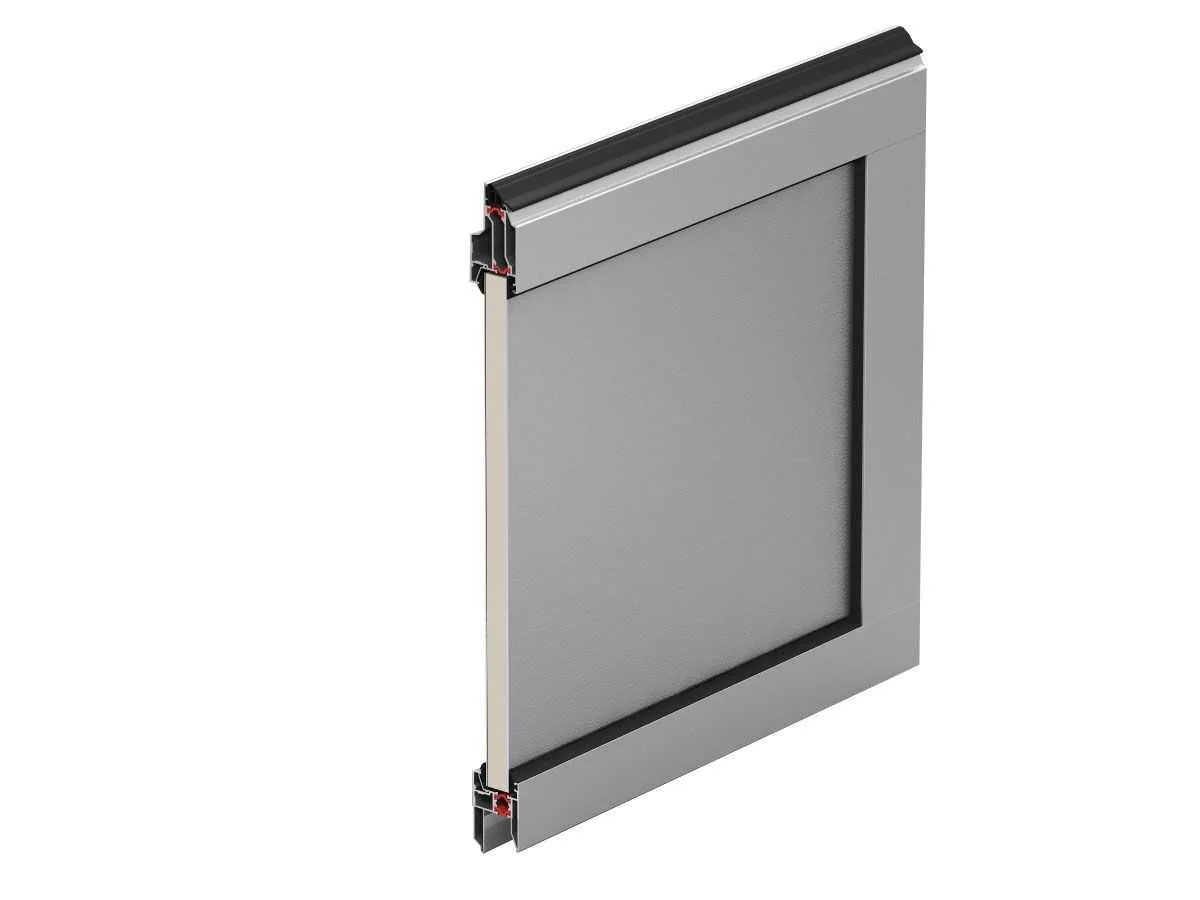

Panoramic Door AluTherm
Thermally Insulated Panoramic Door
- Maximum size
- 7,000 × 6,000 mm
- Panel thickness
- 45 mm
- Glazing options
- 26 mm double or 25 mm triple glazing
Entrance Gates
ALUMINUM

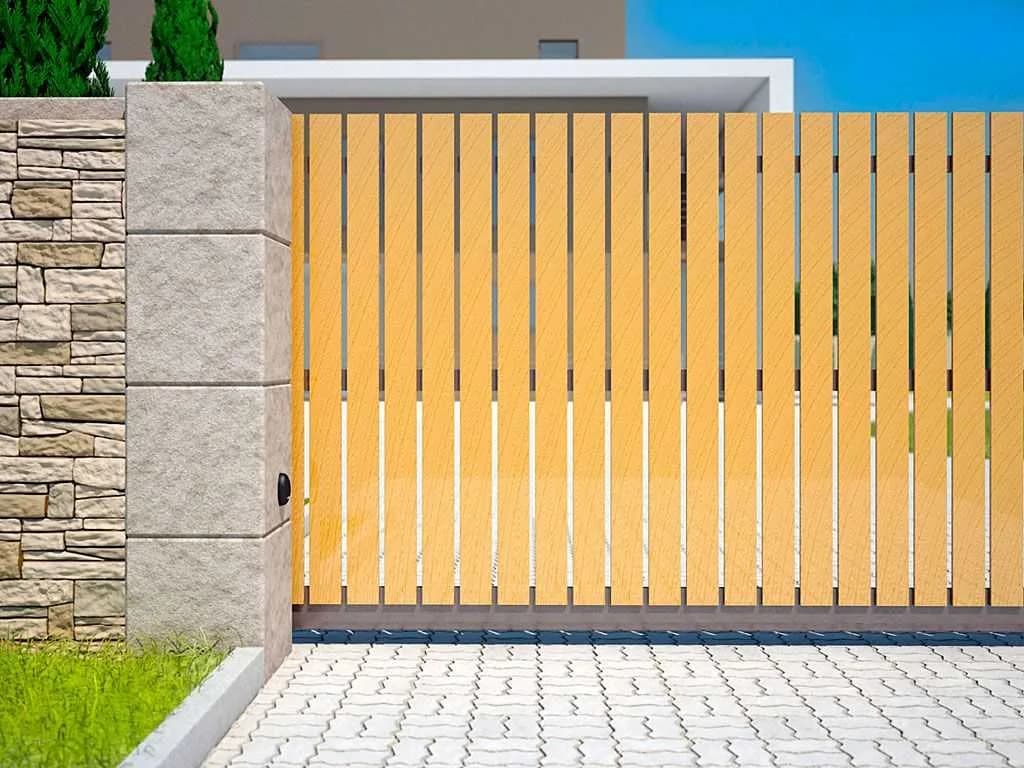

ADS400 Sliding Gate
Cantilever Sliding Entrance Gate
- Sandwich-panel thickness
- 45 mm
- Infill profiles
- S-rib, M-rib, L-rib, microwave and panel styles
- Standard infill profile width
- 87 mm
ALUMINUM

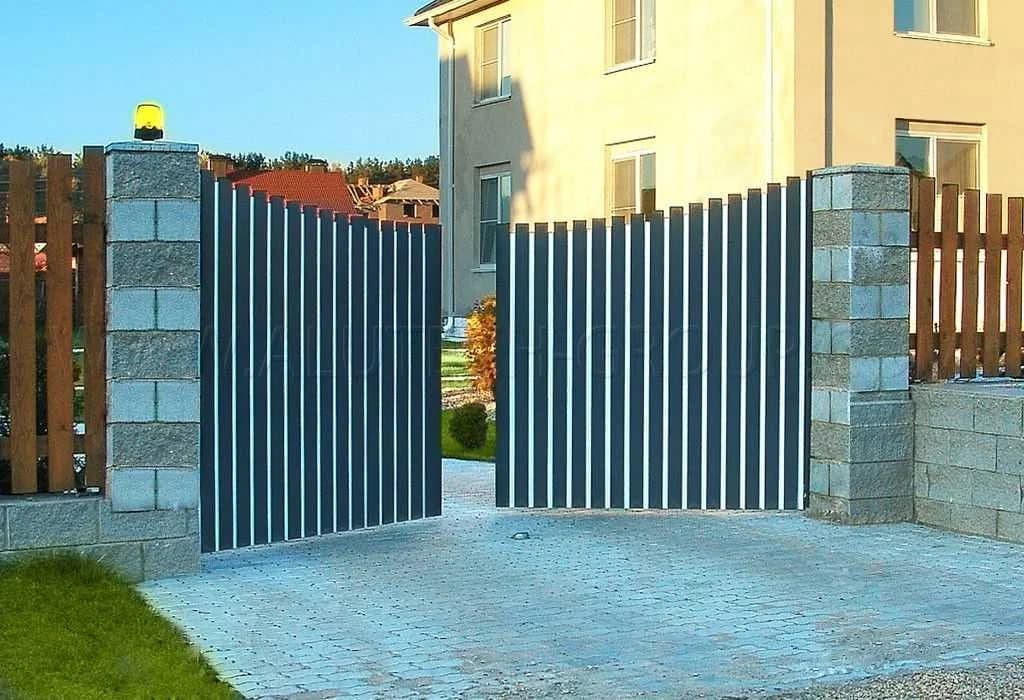

ADS400 Swing Gate
Swing Entrance Gate
- Sandwich-panel thickness
- 45 mm
- Infill profiles
- S-rib, M-rib, L-rib, microwave and panel styles
- Hinges
- Fapim three-section surface-mounted hinges
06 / 07
Glazing Systems

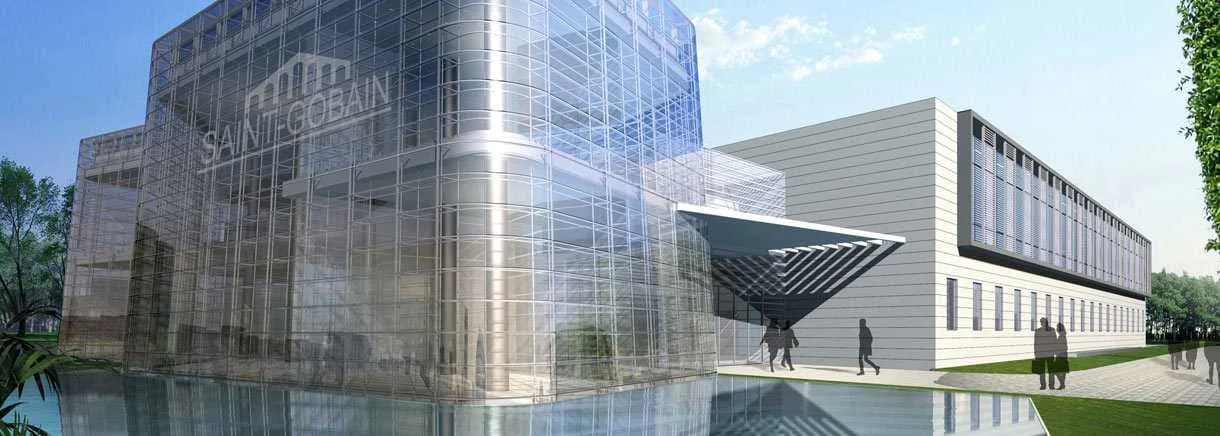

Insulated Glass Units
07 / 07
Accessories & Technology
Window HardwareDoor Locks & Access ControlSmart HomeWindow & Door Accessories
Window Hardware
OTHER
activPilot Comfort PADK
Automatic Window Ventilation Hardware
- Maximum sash weight
- 100 kg
- Sash rebate width
- 460–1,475 mm
- Sash rebate height
- 695–2,300 mm
OTHER
activPilot Comfort PADM
Motorized Window Ventilation Hardware
- Maximum sash weight
- 100 kg
- Sash rebate width
- 460–1,475 mm
- Minimum sash rebate height
- 695 mm exposed cable; 820 mm concealed cable
OTHER
activPilot Concept
Modular Window Hardware
- Permitted sash weight
- 100 or 130 kg
- Sash rebate width
- 270–1,725 mm
- Sash rebate height
- 230–2,800 mm
OTHER
activPilot Select
Concealed Window Hardware
- Maximum sash weight
- 150 kg
- Sash rebate width
- 380–1,725 mm
- Sash rebate height
- 230–2,800 mm
OTHER
activPilot Control
Window Monitoring Sensors
- Alarm monitoring
- VdS Class B and Class C sensor options
- Contact types
- Magnetic and RFID
- Cable lengths
- Source lists 3 m and 6 m variants
OTHER
activPilot Ergo
Low-Handle Window Hardware
- Maximum sash weight
- 80 kg
- Sash rebate width
- 460–1,200 mm
- Sash rebate height
- 460–2,210 mm
Door Locks & Access Control
OTHER

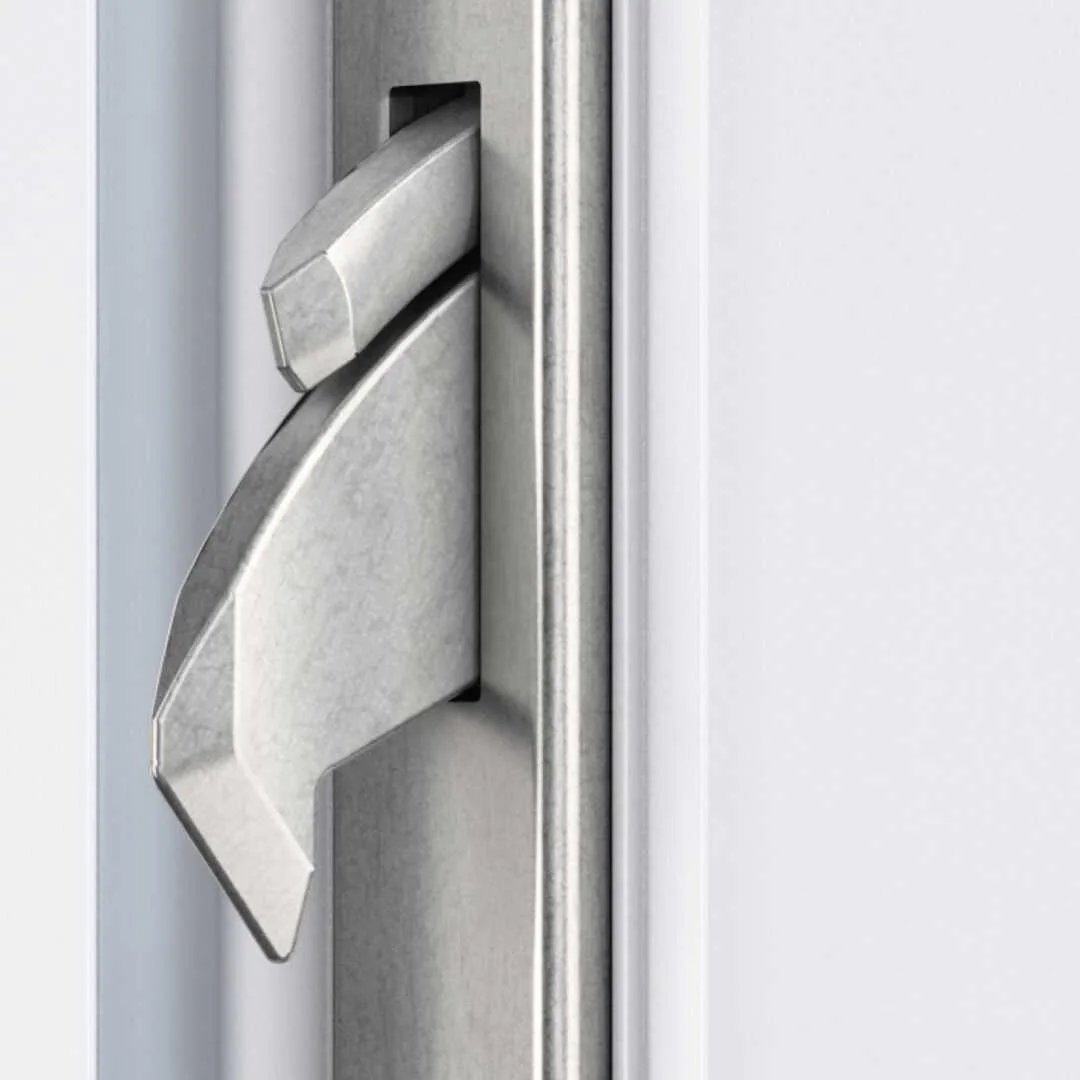

autoLock AV3
Automatic Multi-Point Door Lock
- Lock strip length
- Up to 2,400 mm
- Hook travel
- 25 mm
- Security class
- RC2
OTHER

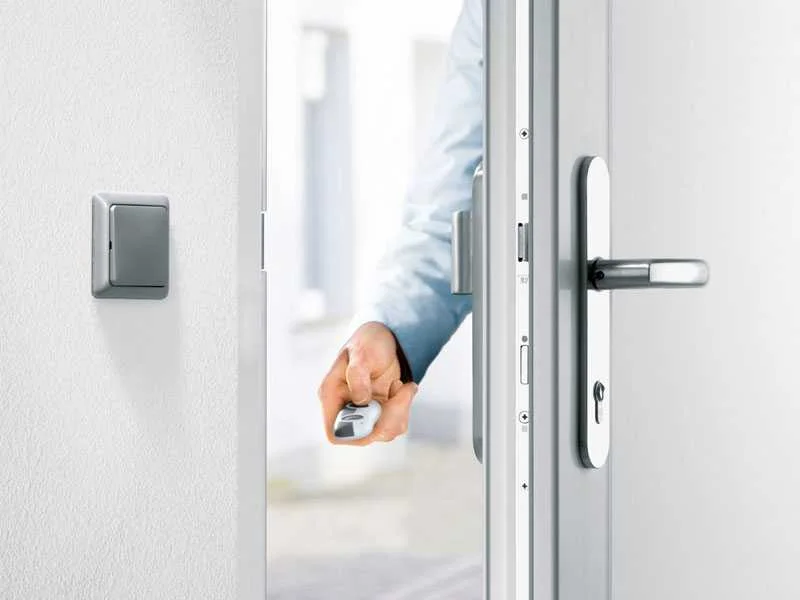

blueMatic EAV3
Electrically Released Multi-Point Door Lock
- Power supply
- 12 V DC, 2 A
- Third-party supply minimum
- 12 V DC stabilized, 1.5 A
- Access options
- Remote control, intercom or fingerprint reader
OTHER
blueCompact
Electronic Access-Control System
- Transponder
- Hitag S 2048
- Frequency
- 125 kHz
- Encryption
- AES, 128-bit block size
